Description
PH-1074
Prefabricated Buildings
74 m²; 2+1

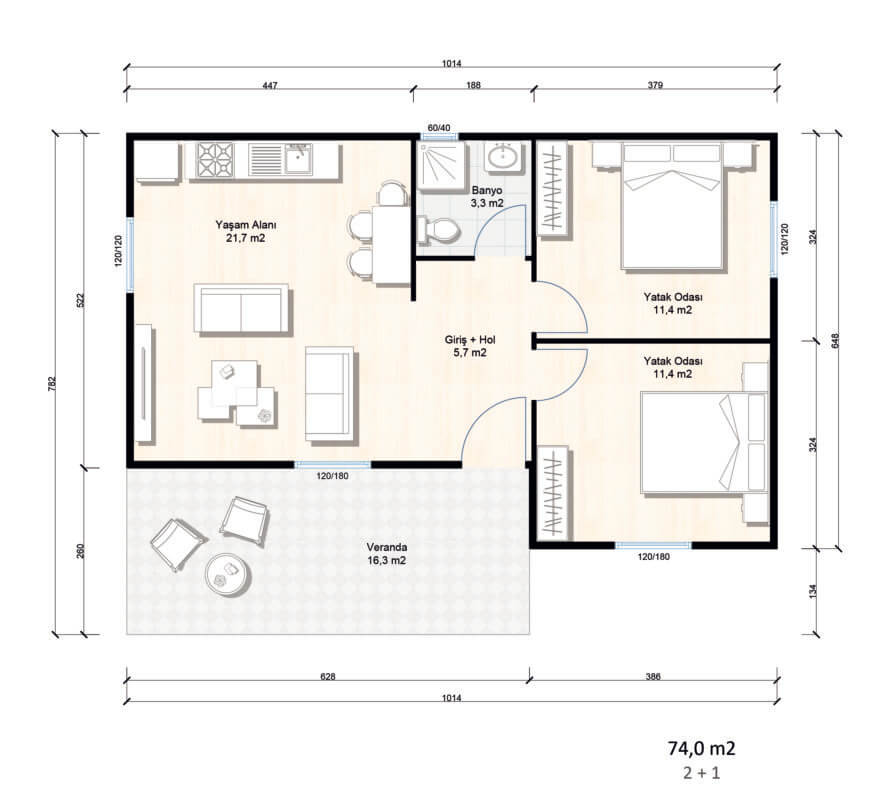

Plan Image (Ground Floor)
Technical Specifications
| Wall | 2800 mm Steel Frame System |
|---|---|
| Structural Steel | High-standard structural steel manufactured from galvanized sheet metal using roll-former machines |
| Exterior Wall Panels | Thickness: 100 mm + 08 mm Betopan + 16 kg/m³ EPS + 08 mm Betopan |
| Interior Wall Panels | Thickness: 60 mm + 08 mm Betopan + 16 kg/m³ EPS + 08 mm Betopan |
| Roof | Gable Roof – Single Layer Panel |
| Roof Insulation | Mineral Wool (80 mm) |
| Exterior Door | Steel Door |
| Interior Doors | American Panel Door |
| Windows | PVC Double Glazed Glass |
| Electrical Installation | Concealed Electrical Wiring |
| Plumbing System | Hot and Cold Water Plumbing |
| Sanitary Fixtures | Toilet + Sink + Shower Tray and Faucets |
Semi-Finished or Turnkey Delivery;

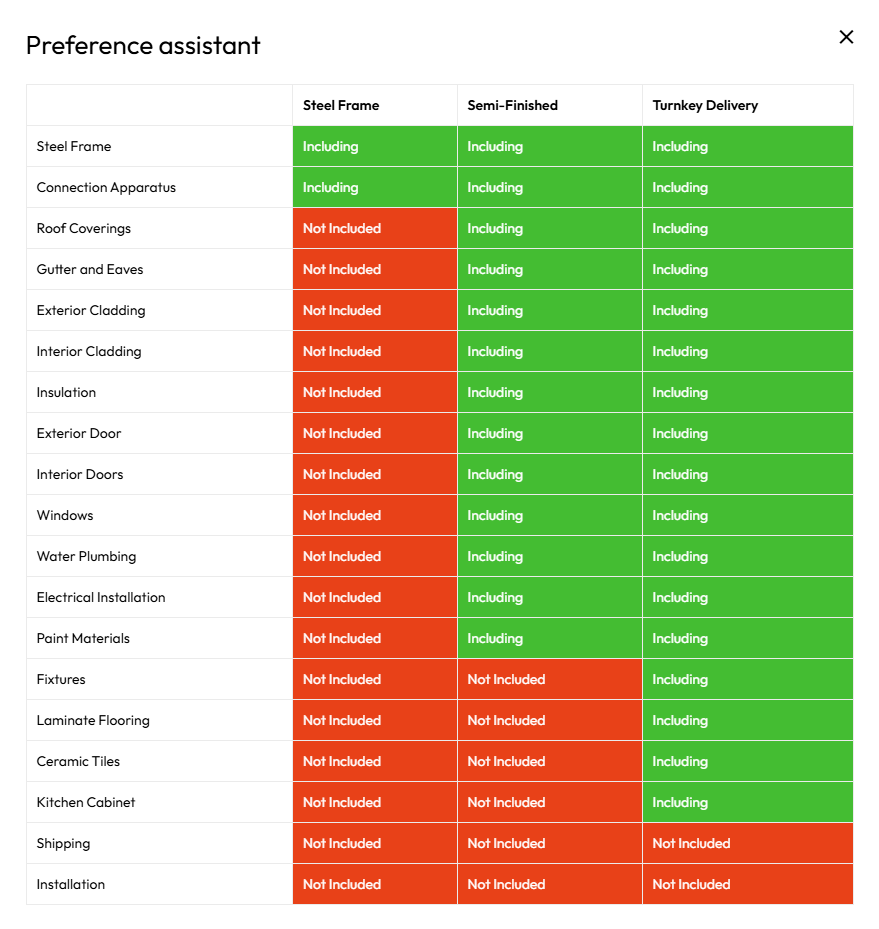

Review the preference assistant:
