Description
PH-2114
Prefabricated Buildings
114 m²; 3+1

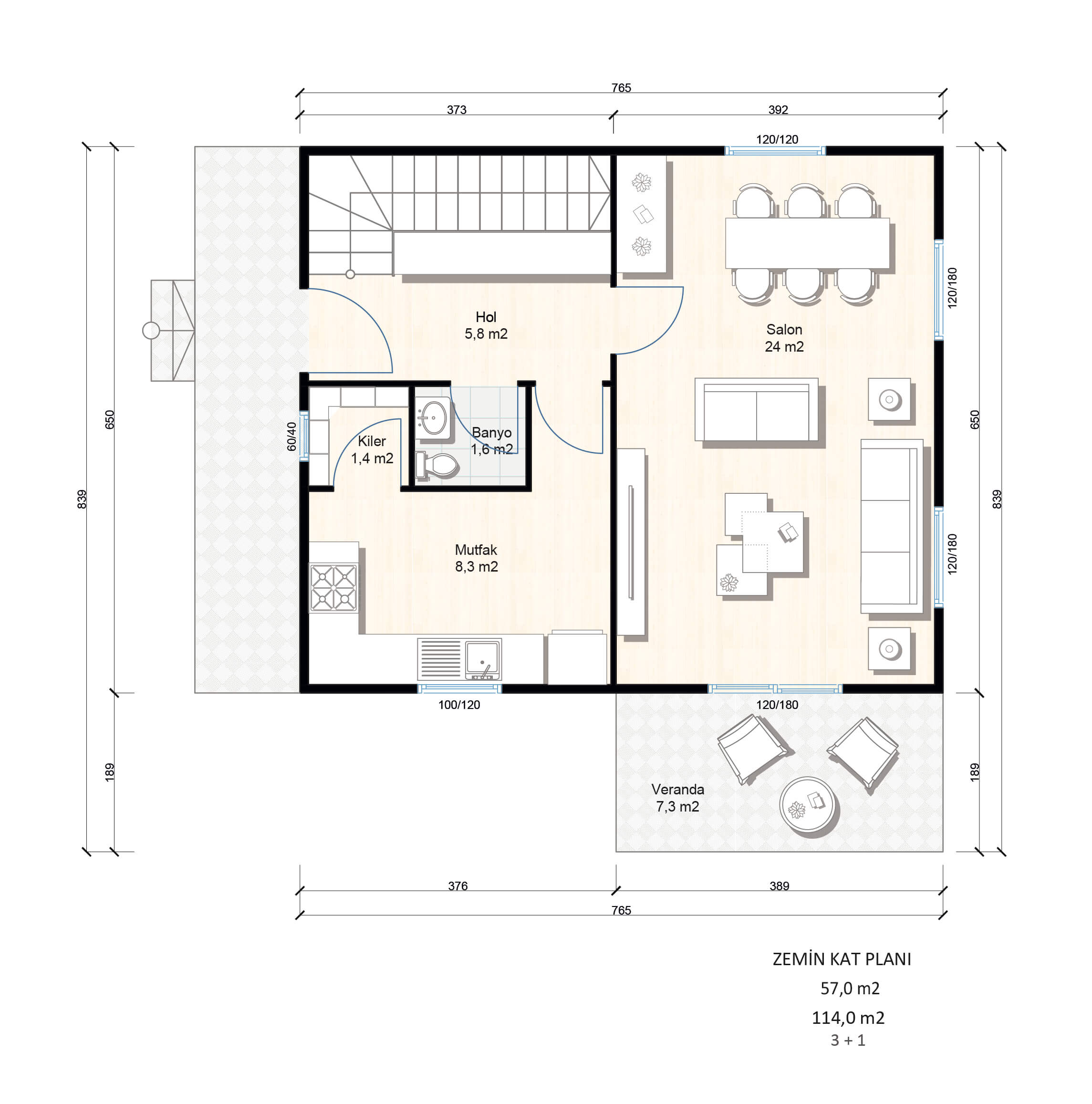

Plan Image (Ground Floor)

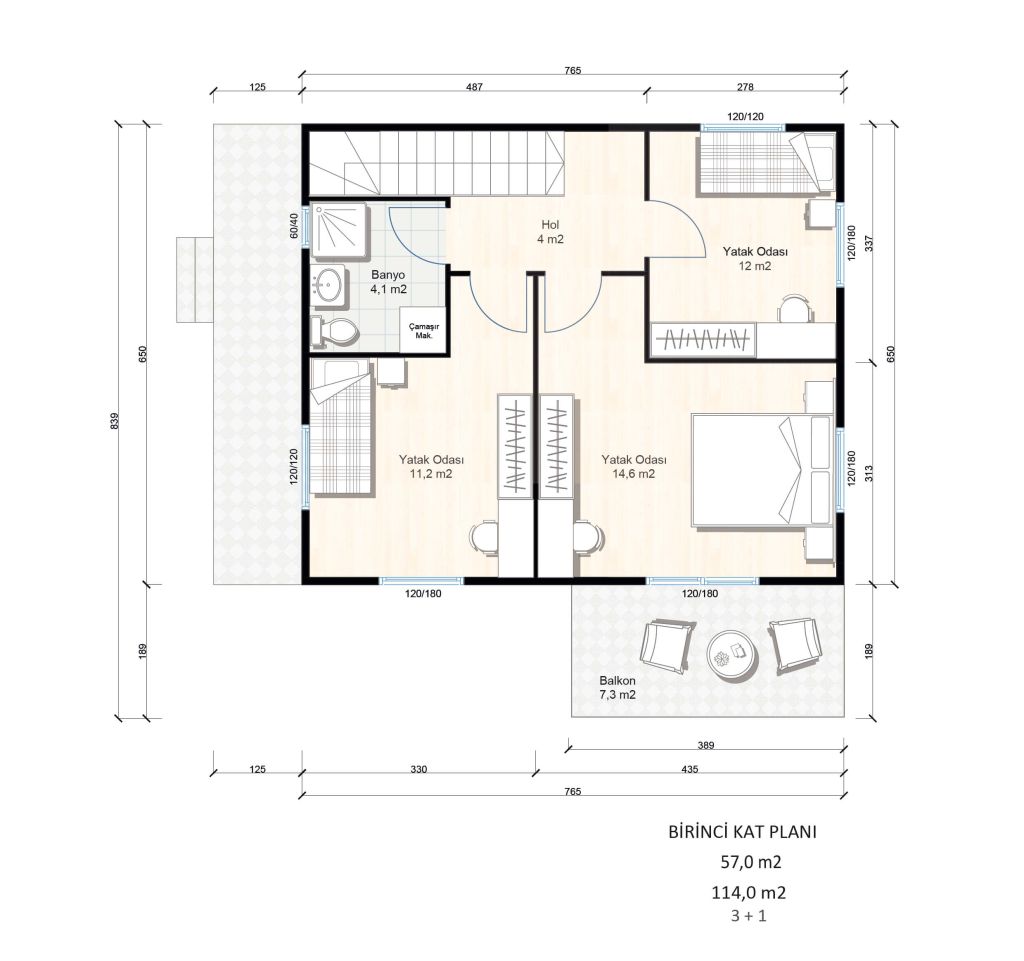

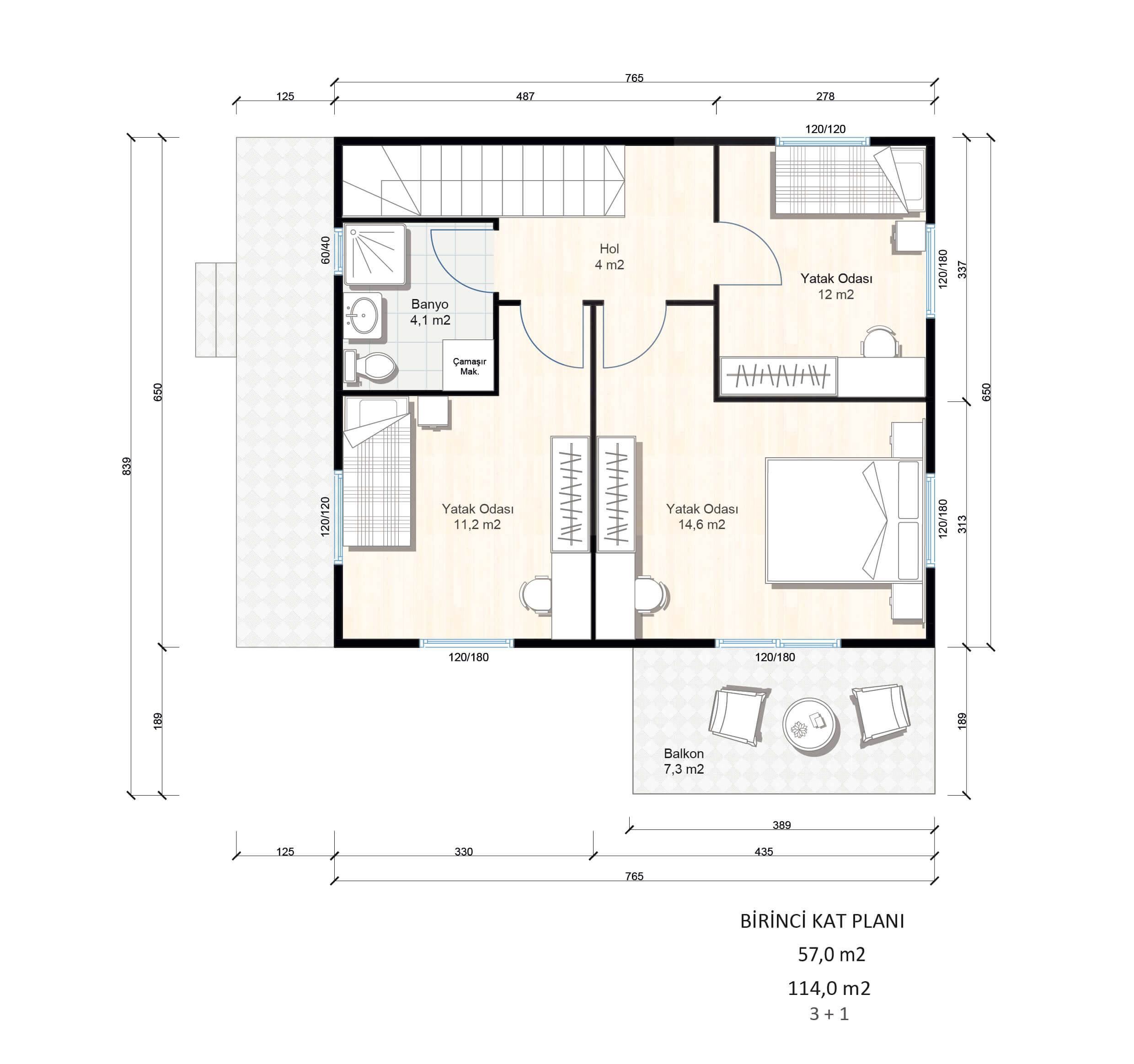

Plan Image (First Floor)
Technical Specifications
| Wall | 2800 mm Steel Frame System |
|---|---|
| Structural Steel | S-220 Structural Steel |
| Exterior Wall Panels | Thickness: 175mm + Mineral Plaster + Kalekim + 4 cm Insulation + Boardex + OSB + Steel + Gypsum Board |
| Interior Wall Panels | Thickness: 120 mm + Gypsum Board + Steel + Gypsum Board |
| Wall Insulation | Knauf Mineral PLUS IPB037 |
| Roof | OSB + Membrane + Metal Tile |
| Roof Insulation | Knauf Earthwool |
| Exterior Door | Composite Door |
| Interior Doors | Melamine Panel Door |
| Windows | PVC Double Glazed 7000 Series (FIRATPEN) |
| Electrical Installation | Concealed Electrical Wiring (Mutlusan) |
| Plumbing System | Concealed Plumbing System (Fıratpen) |
| Rainwater Drainage System | Metal Gutter and Metal Downspouts |
Semi-Finished or Turnkey Delivery;
Review the preference assistant:
